FEATURES
- UL® 1069 Listed
- Provides for the following functions from a Hill-Rom® SideCom® Unit:
- Call-placed indication
- Monitor indication
- Hands-free two-way communication
- Nurse Call
- Supervised
- Ramp lock plug-in connectors
DESCRIPTION
The RY351B SideCom® adapter is designed for use with IR311E, IR312E, IR319B and IR320B patient stations, and a Hill-Rom® SideCom® unit. When used with the above patient stations and the Hill-Rom® SideCom® unit, the RY351B adapter will provide all the necessary circuitry for a Hill-Rom® SideCom® unit to control all functions normally controlled by a pillow speaker. This includes, but is not limited to, nurse call and patient communications. Note: There is one RY351B SideCom® adapter required per SideCom® unit.
SPECIFICATIONS
- Dimensions:
- Length: 4.25" (108 mm)
- Width: 2.00" (50.8 mm)
- Height: 1.25" (31.8 mm)

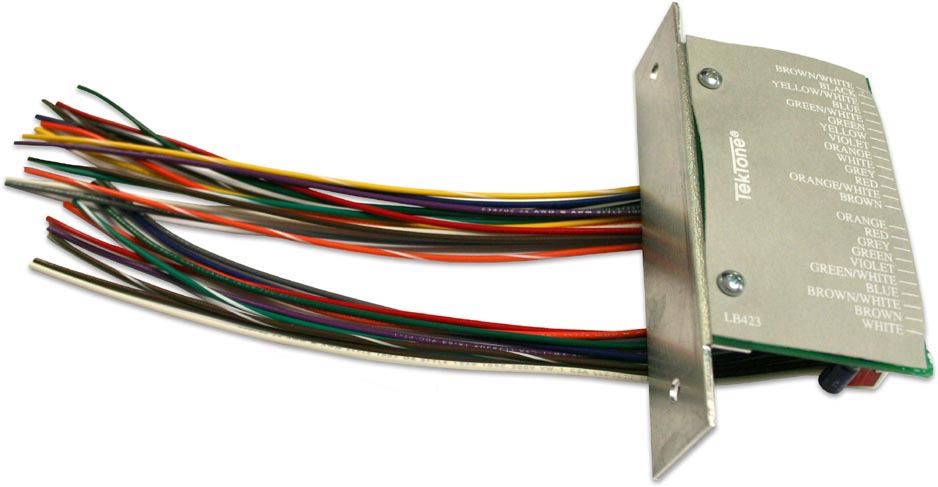

- Construction: Circuit board mounted on a rugged aluminum mounting bracket.
- Connections: Reliable ramp lock plug-ins.
- Housing: Single gang ring, or single gang ring and double gang box, or exact equivalent.
WARRANTY
One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
