FEATURES
- Provides two-way audio into resident rooms.
- LED illuminates when an audio connection is open.
- UL/cUL®1069 and UL®2560 Listed.
- RoHS Compliant.
DESCRIPTION

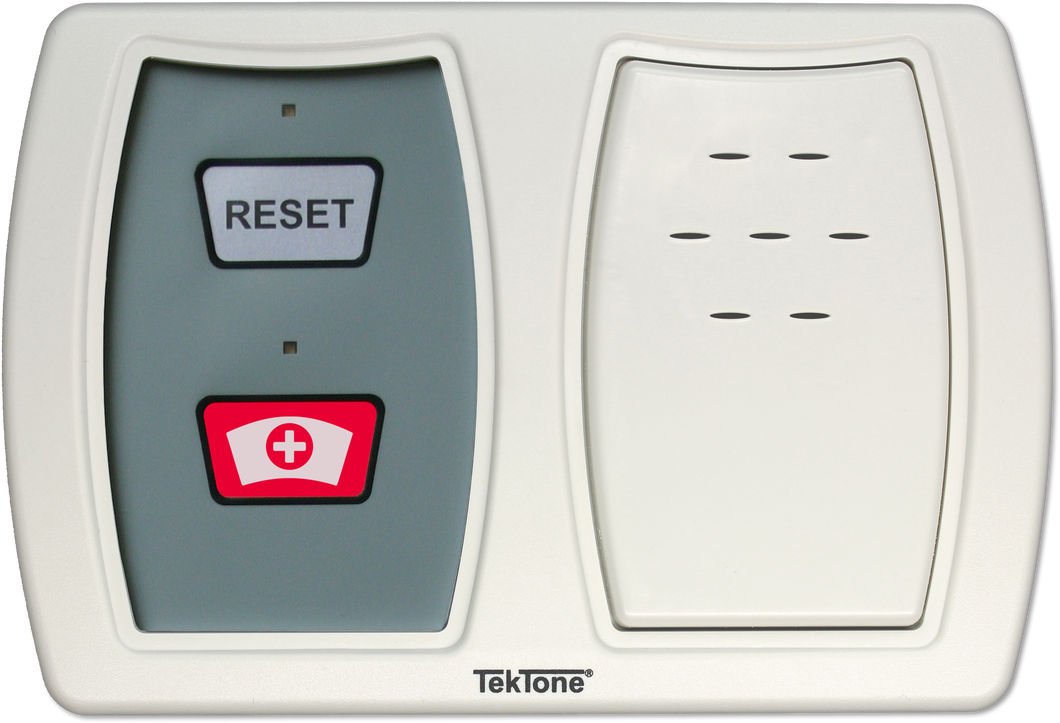

The IR160 Audio Station is designed to be installed in a resident living area where two-way audio communication is required.
Up to four IR160s may be associated with a single station ID using the LS450 Config Tool software.
Mount the station using an IH121K Single-Gang Mounting Kit, or mount an IR160 Audio Station and a callplacement station together using an IH122K Dual-Gang Mounting Kit. The station snaps into the kit’s plastic bezel and then onto the kit’s surface mounting plate, leaving no visible screw holes.
SPECIFICATIONS
- Dimensions: 4.58"H × 6.74"W × 1.03"D (116 mm × 171 mm × 26 mm)
- Environment: 0°C–60°C
- Construction: PC board with quality electronic components mounted on a flame-retardant (UL® 94V-0) plastic faceplate.
- Mounting: Attach included back plate to a standard single-gang ring or single-gang ring and box.
- Connections: 4-wire flying lead (1 pair for Room Controller, 1 pair for Audio Bus)
WARRANTY
One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
