TekTone JK300A, JK300/2 Tek-CARE Monitor Call Interface
TekTone JK300A, JK300/2 Tek-CARE Monitor Call Interface

TekTone JK300A, JK300/2 Tek-CARE Monitor Call Interface

Regular price
$41.25
Sale price
$30.94
Shipping calculated at checkout.

FEATURES

  • Easy Installation
  • Mounted on a flame-retardant (UL®94V-0) plastic panel
  • Simple, reliable operation

DESCRIPTION

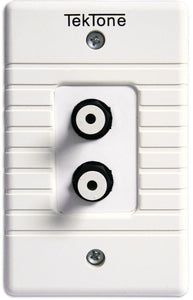

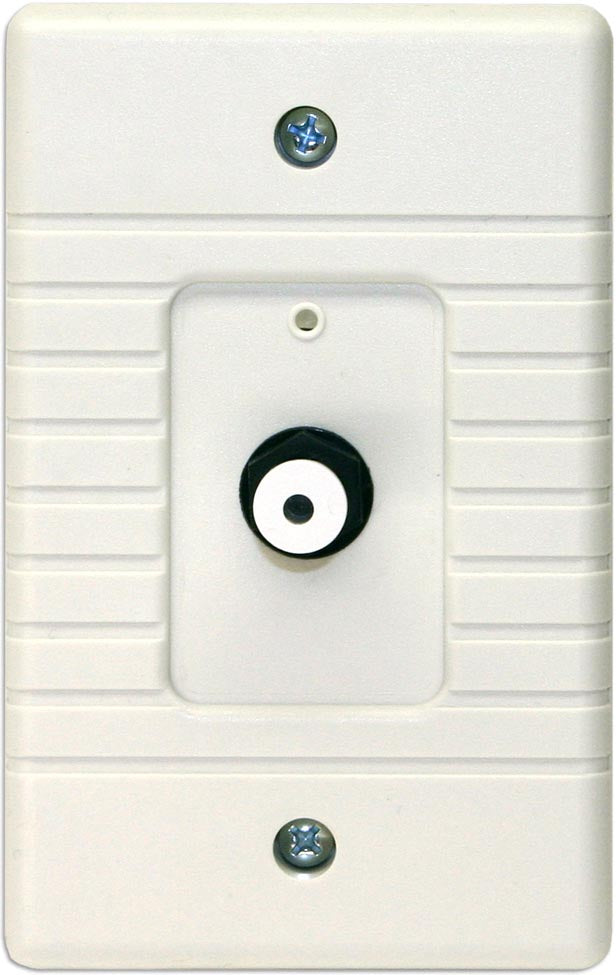

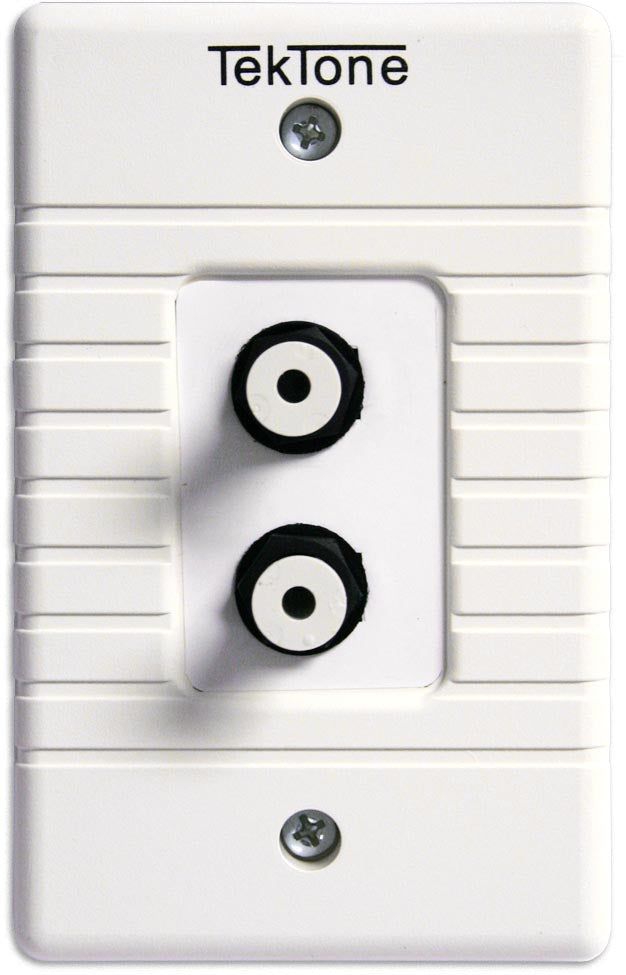

The JK300A Monitor Call Interface is for use in applications where a simple interface is needed to connect the monitor input of an IR300-series or IR400P5-series station to an external contact closure. The JK300A accepts a standard ¼" phono-type jacks and registers a monitor call if a plug is removed. A ¼" dummy plug is included for use when the monitor point is not connected to an external device. The JK300/2 Monitor Call Interface provides two ¼" jacks and two dummy plugs.

SPECIFICATIONS

  • Dimensions:
    • Height: 4.5" (114 mm)
    • Width: 2.75" (70 mm)
    • Depth: 1.5" (38 mm)
    • Projects: 0.25" (6.5 mm) from mounting surface
  • Construction: Reliable components mounted on a flame-retardant (UL®94V-0) plastic panel
  • Connections: Wire lead pigtails
  • Housing: Single-gang electrical box or ring

WARRANTY

One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
