FEATURES
- Low voltage operation
- Reliable alternate power supply
- Integrated circuit design
- Easy installation
DESCRIPTION
The PK124K Battery Backup Kit provides continuous battery charging so that if power to system equipment is interrupted, standby operating power is provided for up to approximately 6 hours. (Time may vary depending on system size and usage.)

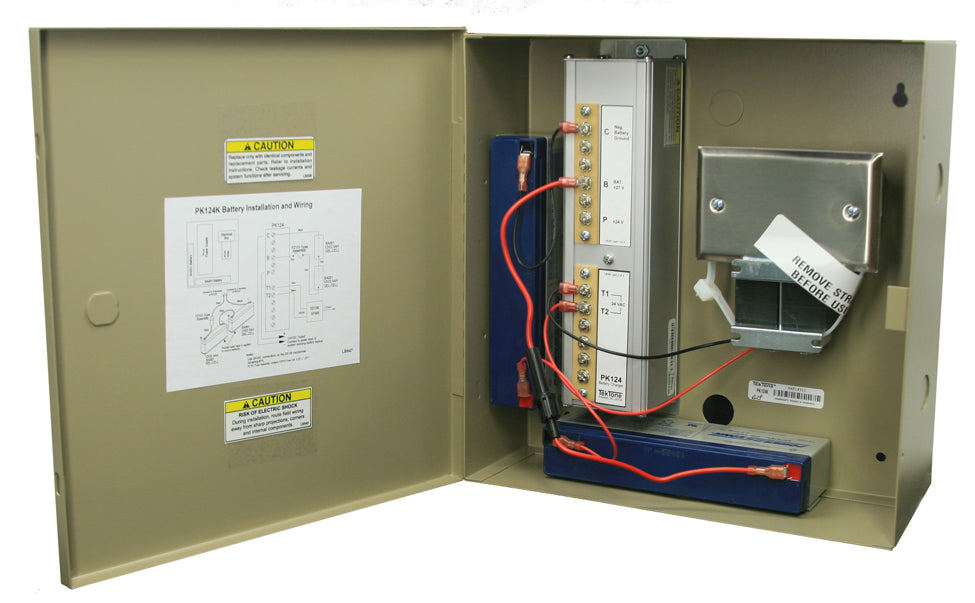

The PK124K kit includes a transformer, a battery charger and two batteries—all preinstalled in a 19-gauge cold-rolled steel housing. Knockouts are included on all sides except the lid, to allow connection of electrical conduit from any direction. In addition, the lid has a knockout which can be used to install an optional key lock. The enclosed single-gang electrical junction box is galvanized steel with a stainless steel cover plate.
TekTone® systems supported by the PK124K include the DS100 Door Sentry & Emergency Alarm System, the CM800 Emergency Call System, Tek-ENTRY® Apartment Entry Systems, and the Tek-SAFE® Area of Rescue Assistance System.
SPECIFICATIONS
- Dimensions:
- Height: 11.75" (300 mm)
- Width: 11.75" (300 mm)
- Depth: 3.75" (96 mm)
- Construction: 19 gauge, cold-rolled steel
- Transformer: 24 VAC, 30 VA (SS106)
- Storage: Two 12 VDC batteries (BA001)
- Connection: Screw terminals (on PK124)
- Mounting: Surface
WARRANTY
One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
