DESCRIPTION

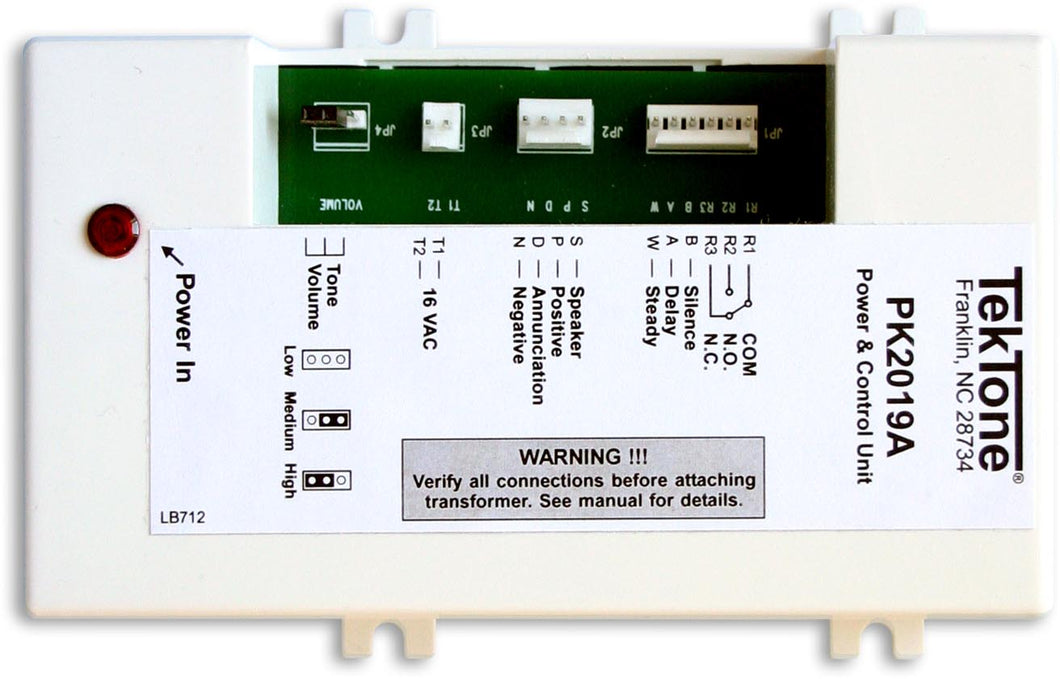

The TekTone® PK2019A Power & Control Unit is a general purpose power & control unit used with the CM800 Emergency Call System and the DS100 Door Sentry & Emergency Alarm System.
The PK2019A provides tone signal, tone silencing, tonesilenced indication, auxiliary signal relay, and 24 VDC for accessory device operation. The PK2019A also provides three levels of tone volume control.
SPECIFICATIONS
- Dimensions:
- Height: 5.5" (140 mm)
- Width: 3.125" (80 mm)
- Depth: 2.0" (51 mm)
- Power Required:16 VAC 30 VA max
- Output Current: 1 Amp. maximum
- Tone Speaker: 45 ohms (up to 3 in parallel)
- Tone-Off Lamp: 0.04 Amp. (up to 3 in parallel)
- Connections: Plug-in
- Construction: Flame-retardant (UL® 94V-0) plastic
WARRANTY
One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
